Description

Product Description：

Name：100W-3000W water-cooled laser power sensor

Type：BND-3000W-D50-YJ

The BND-3000W-D50-YJ is a water cooled thermal power sensor is designed for very high powers with Φ50 mm aperture. it can measure power from 100 w to 3,000 W. it has a deflecting cone and annular absorber that withstands high power densities to 1.7 kW/cm. lt covers the spectral range from 266 nm to 10.6um.

Power sensor Features:

1. Continously laser power measurement,up to 5000W;

2. High linearity,sectional calibration is not required;

3. High absorption;

4. 50mm aperture

5. Water Cooled;

6. V-Groove is optional.

Model	BND-3000W-D50-YJ
Absorption	90%
Wavelength?Range	266nm-10.6um
Power?Range	100W-3000W
Scale	Auto
Aperture	50mm
Power?Resolution	0.1W
Response?Time(0-95%) (a)	5s
Calibration?Uncertainty	<4%
Non-linearity	<±1%
Accuracy	±4%
Damage?Threshold?(b)	1.7kW/cm2?@3kW
Cooling	water cooled
Recommended?Water?Flow Rate@Full?power(c)	5L/min
Dimension	Φ 143×55mm
Cable?Length	5m
Connector?Type	90%

Notes:

(a).Time from zero to 95% of stable value;

(b).Recommended laser diameter:>25mm@5kW,>20mm@3kW;

(c)Recommended Water temperature range:18-30°C;Water temperature change rate:<1℃ /min.

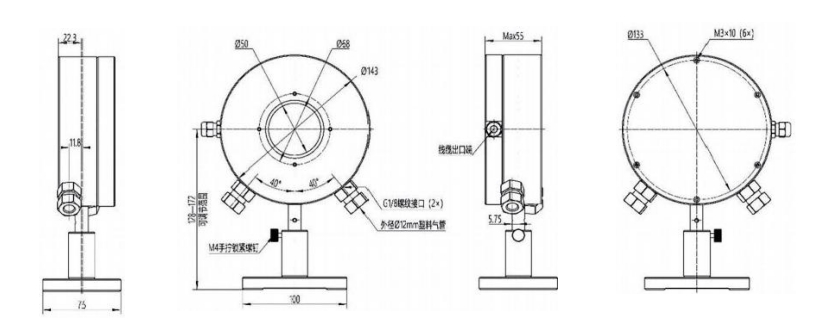

Dimension:
